CUSTOM SIZE LED LIGHT PANELS

Led Light Panels

pf1
pf2
pf4
pf3

CPD Lite Tile
6mm LED Light Panel
Frameless LED panel, Custom Any Shape/Size

Custom Size Edge Lighting Panels (Any Shape/Size)

Our wholesale Custom Size LED Light Panels are customized into any shape or size imaginable up to 4′ x 8′. We manufacture our panels custom to size, and our wholesale rates have kept us # 1 in the industry for 20+ years. CPD Custom Size LED Light Panels are much different than the rest. The surface brightness of our light panels is extremely powerful and our lifespan is approximately 75,000 hours. Our 6mm thin Custom Size LED Light Panels are used for back lighting and ambiance lighting around the world. We use the highest quality LED’s and components and our panels have been used in every application around the world. Flat lighting fixtures are produced by edge lighting 6mm thin acrylic panels for a thin and uniform light source. Edge lighting is mainly used by architects who understand how this lighting can enhance their designs. This modern way of back lighting has been utilized by top notch designers around the globe as well as homeowners who simply want to add appeal to their project. Contact us today to discuss your ideas and see how we can illuminate your showcases.

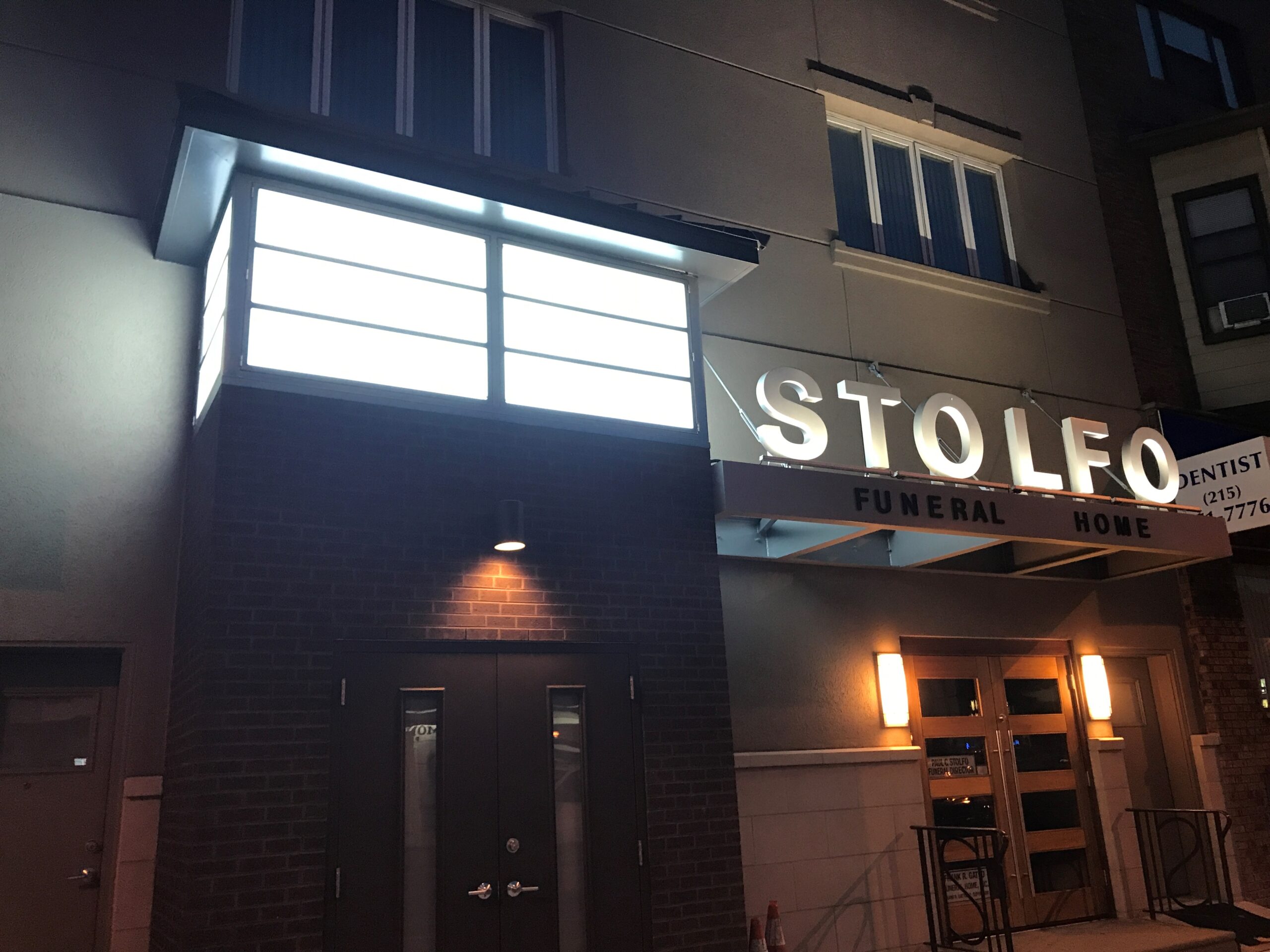

Custom Size LED Light Panels Uses

  • Illuminated Bars and Countertops
  • Backlighting

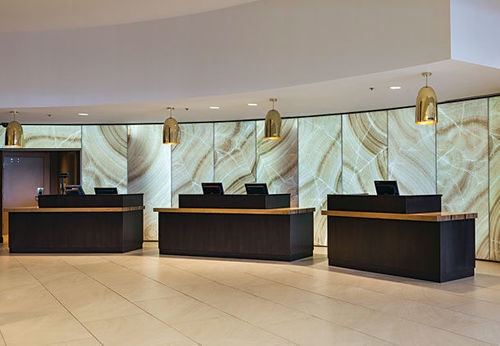

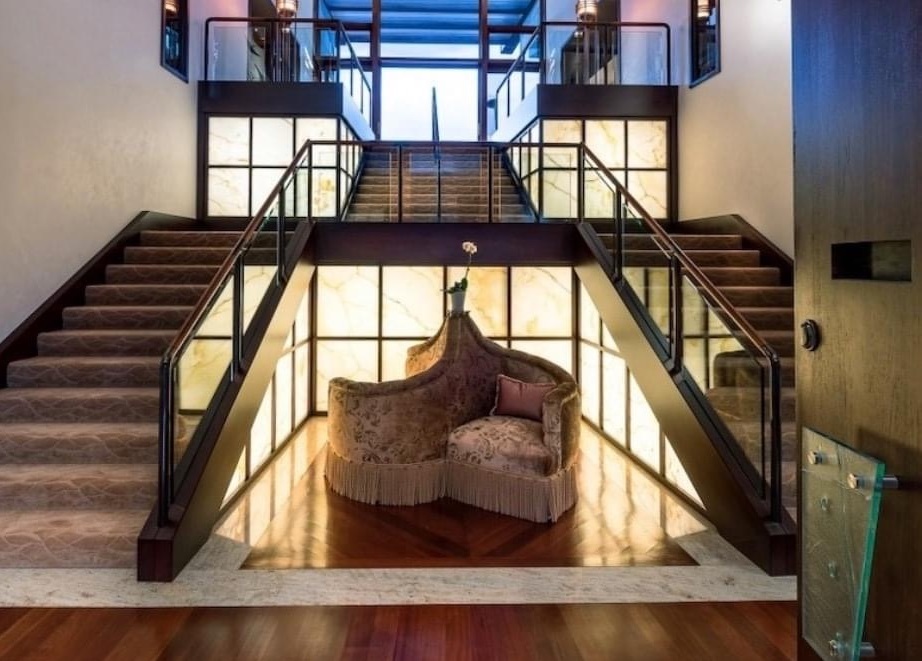

  • Illuminated Stone (Onyx / Corien / Quartzite / Etc )
  • Backlit Graphics
  • Tradeshow Displays
  • Tradeshow Illuminated Flooring
  • And much more...

Custom Size LED Light Panel Features

  • Available in custom sizes, shapes
  • Frameless designs
  • Slim (6mm thick)
  • Laser cut dotting technology
  • Pull-resistant design wire
  • Custom temperature options (2700-3200K, 4000-5000K, 6000-6500K…)
  • High brightness
  • Long LED lifespan (50 000-75000 hours)
  • Energy saving and maintenance free (70% energy savings over traditional lighting)
  • Even and stable light quality
  • Advanced 3-year warranty

Technical Information

Specifications
Input Voltage12 volt / 24 volt power supply depending on your requirement.
Wattage1 0.8W per 40 inches LED strip
Color Temperature2700-3200 K 4000-5000 K 6000-6500K and etc.
Wire size20AWG (Pull-resistant design wire)
Shape and sizeCan be customized any shape, largest size is 4’x8’ (can be tiled for larger sizes)
Thickness6mm (.23") (+/-) 1mm
Weight"roughly" 1.5 lbs per sq foot
Wire coming from panel3” DC wire + 10’ extension cord
Material Front Side of PanelClear pure virgin acrylic panel or with diffuser
Material Back Side of PanelHigh quality reflecting sheet
Catalog DesignationNon- All custom shapes, no stock items
Dimming Capacities12V/24V-72A (Plug and play dimmer)
Power SupplyUL Listed DC adaptor
Connection from Panel to Power SupplyPlug & Play. Male plug on power supply / Female plug on panel (2.1 / 5.5 mm barrel plug)
