Curved – Column LED Light Boxes

Led Light Boxes


Column LED light box
stainless steel frame,
custom shape and size

Curved – Column LED Light Boxes

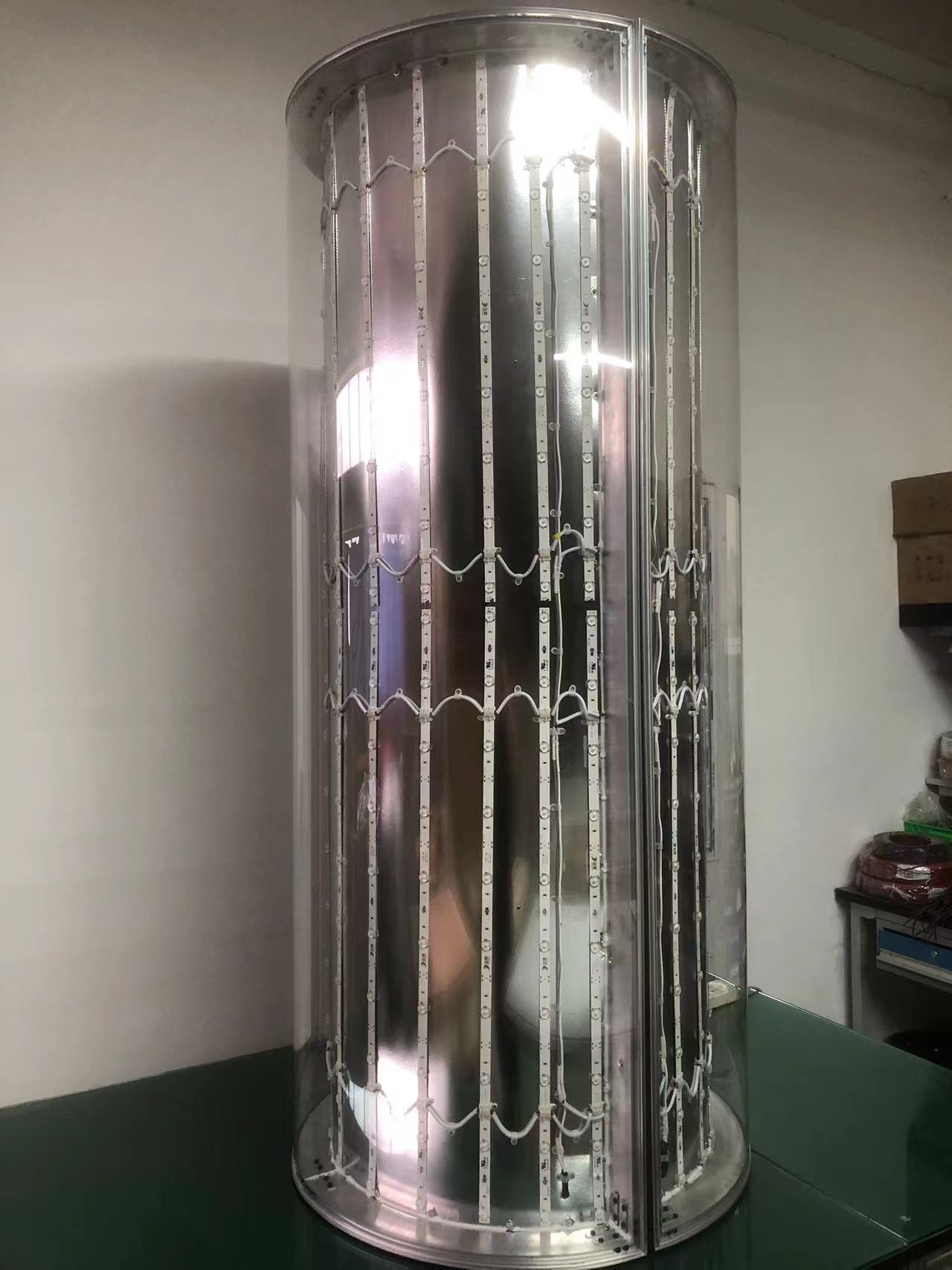

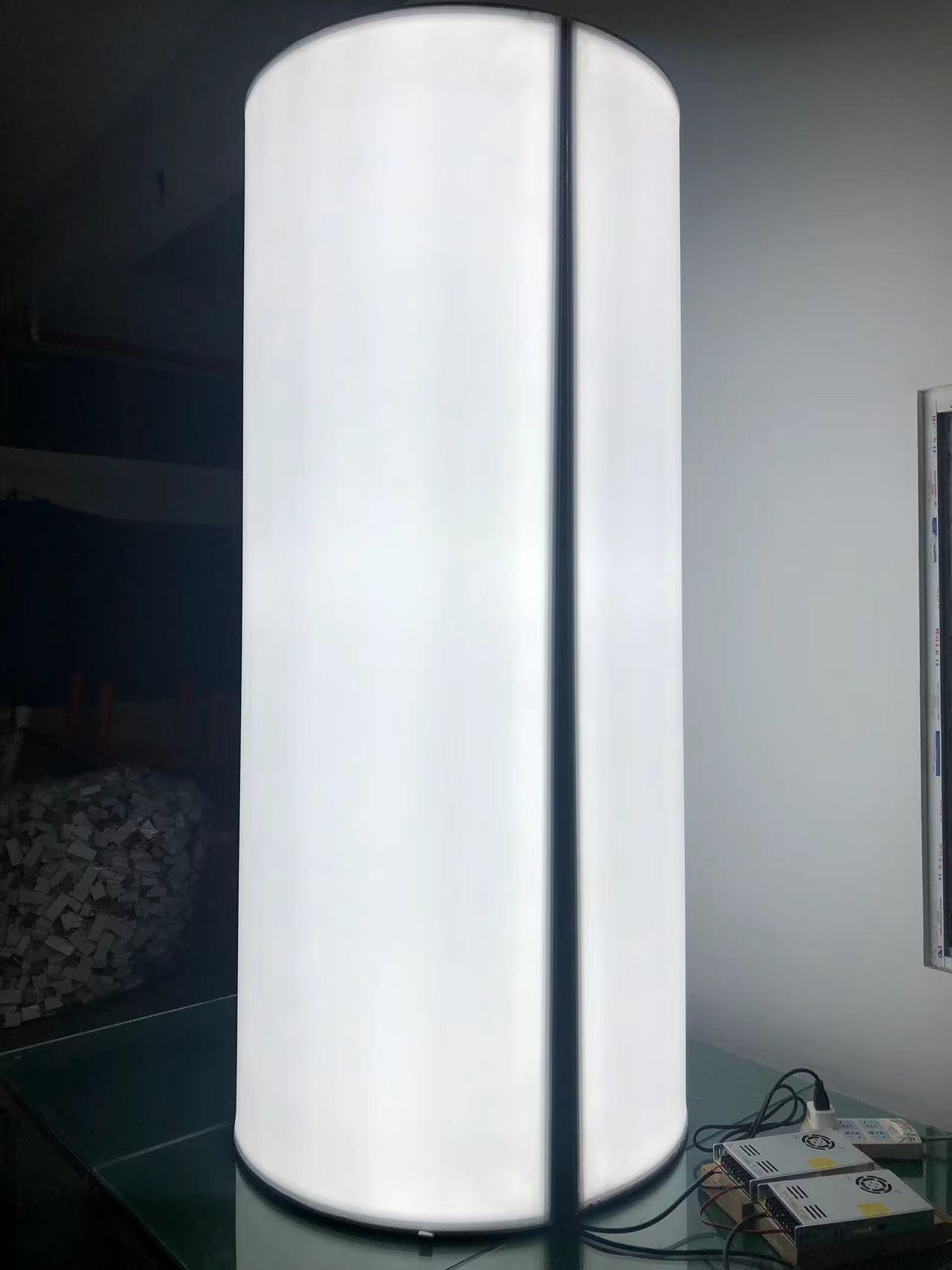

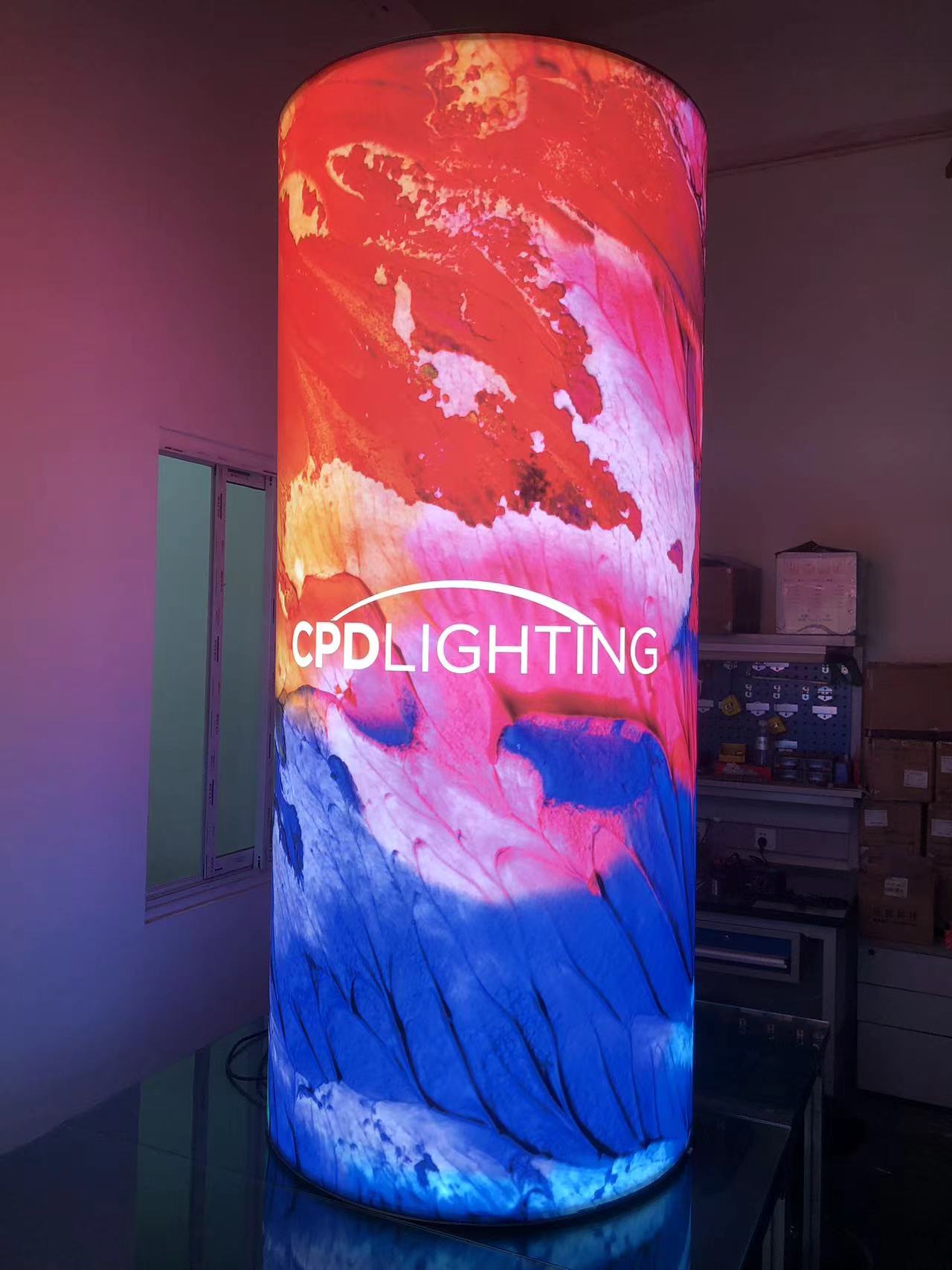

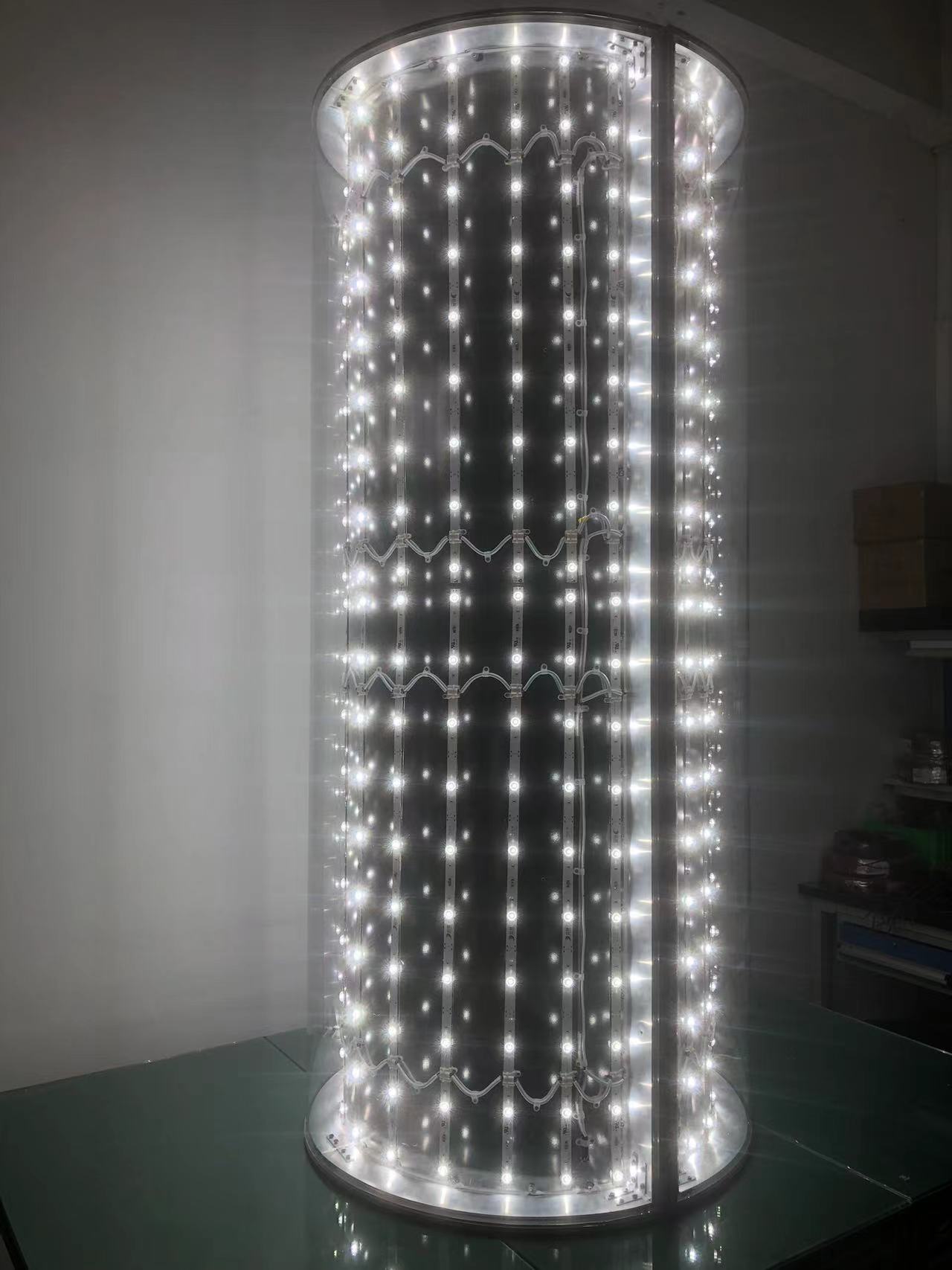

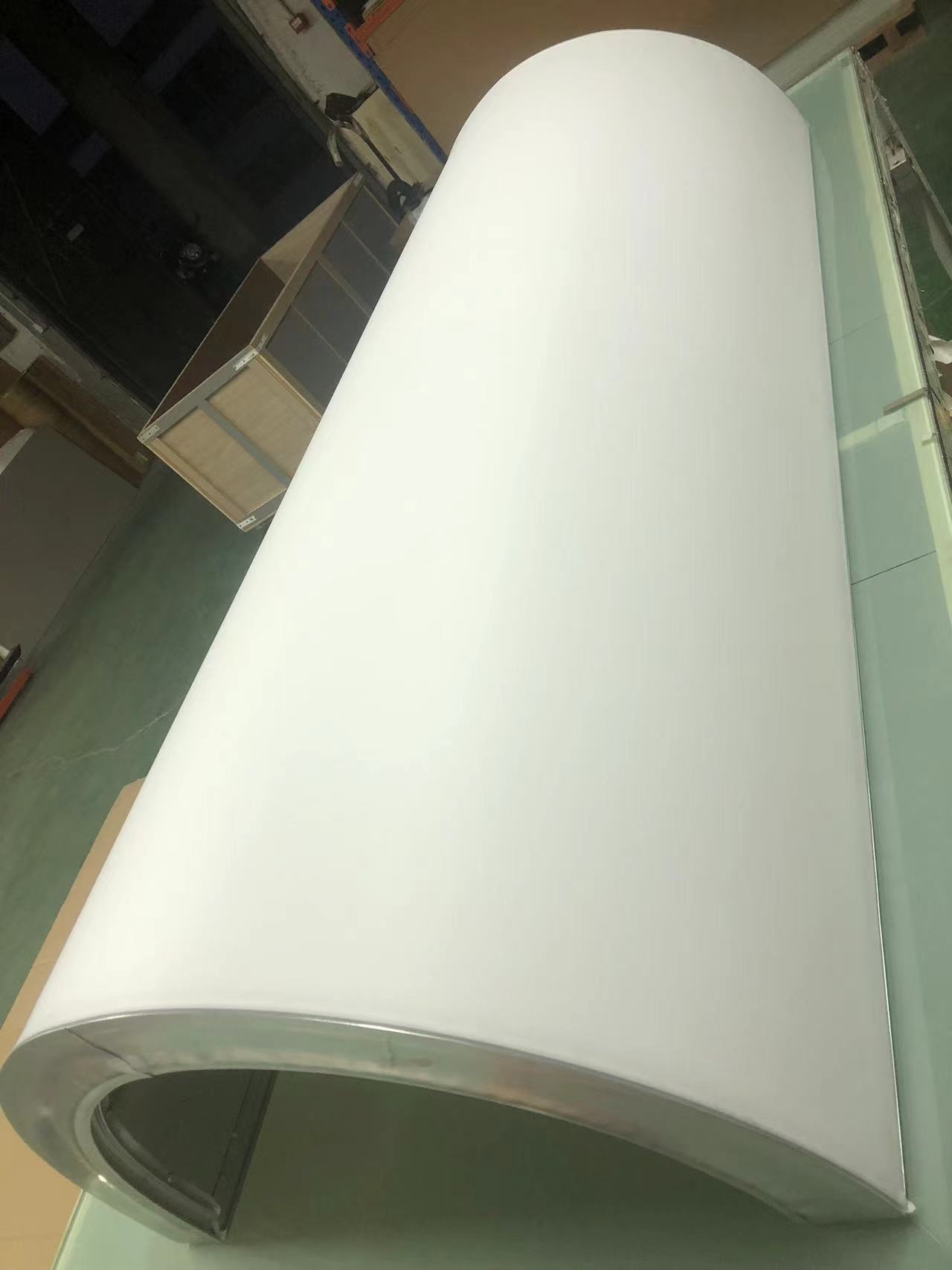

Column LED Light Box

CPD Column light box combines bold design with flexibility and ease of use. We print your image using dye sublimation on fabric or PVC graphic, so you see brilliant images with no shine or sheen. The printed graphic is then placed in front of our column LED light box. This option offers an even and consistent light output with a curved light box. Installation is quick, and graphics can be changed in minutes. To top it off, CPD column light box is maintenance free with a long life span.


  • Available in custom sizes
  • Aluminum / stainless steel frame
  • Easy to install and change graphic
  • Custom temperature options (2700-3200K, 4000-5000K, 6000-6500K…)
  • High brightness
  • Long LED lifespan (more than 50 000hours)
  • Safe, energy-saving, beautiful
  • Even and stable light quality
  • Advanced 3-year warranty

Technical Information

Input Voltage110-240V
Wattage1 W/Chip
Color Temperature2800-3200 K 6000-6500 K 10000-11000 K
wiringEach light box must have derect connection to power supply.Do not wire light box in series.
Operating Temperature-30 °C ~ +40 °C
EnvironmentDry location only (standard)
SizeCustom size
WeightApprox. 2 lbs / sq ft (0.46 kg / sq m)
Frame MaterialAluminum / stainless steel
Frame colorsSilver / Black
