T8 LED Light Tube

A unique, replacement for conventional T8 fluorescent tubes to providing bright, even, flicker-free lighting.  Ideal for retrofitting light boxes and signage. Can be used with AC direct connection

Spec Sheet
Get In Touch

FEATURES

  • UL Classified,internal Driver(UL typeB) ;
  • Voltage:AC100-277V;
  • High power factor ≥0.90;
  • Light source: SMD2835;
  • High efficiency, up to 125lm/W;
  • High CRI>80;
  • Warranty: 5 years.

REMARKS

  • We will replace all the failed products due to we production quality during warranty period;
  • 5 years warranty;
  • We will bear all cost of maintains if the customer can help us to repair locally;
  • We don't have the responsibility to compensate for any incorrect installation or artificial damage;
  • We don't have the responsibility to compensate for damage occurred during the transit.
  • Please use the product within the specified range of voltage;
  • Please follow the correct installation steps to install the product, and do not touch when it is working;
  • Please turn power off when installing and removing the products to avoid risk of electric shock;
  • Please install the tube in the correct sized fixture;
  • Do not look directly at LED light source for a long time

Technical Information

Specifications
Size(FT)Explain
Length(mm)TypicalMinMaxExplain
A1198-1199.4Base face to base face
B1205.51204.01206.5Base face to end opposite base pin
C12131210.81213.6End of base pin to end of opposlte pin end

Parameters

BDT84SUA-18WB-XXXX
Size1.2m/4FT
Power18W
CoverMilky Clear

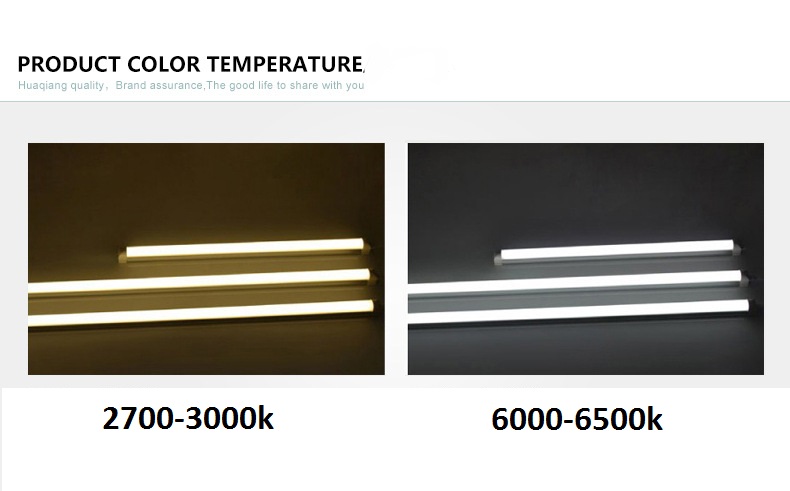

Color temperature3000K 3500K 4000K 4500K 5000K 3000K 3500K 4000K 4500K 5000K
Luminous efficacy(LM/W)115±5% 115±5% 120±5% 120±5% 120±5% 120±5% 120±5% 125±5% 125±5% 125±5%
Lumen output(LM)2070±5% 2070±5% 2160±5% 2160±5% 2160±5% 2160±5% 2160±5% 2250±5% 2250±5% 2250±5%
CRIRa≥80
Input VoltageAC 100-277V
Frequency range50/60Hz
Total Harmonic Distortiont<25%
Beam Angle120
Working Temperature20℃~+ 45℃
Stotage Temperature-25℃~+ 65℃
BDT84SUA-22WB-XXXX
Size1.2m/4FT
Power22W
CoverMilky Clear
Color temperature3000K 3500K 4000K 4500K 5000K 3000K 3500K 4000K 4500K 5000K
Luminous efficacy(LM/W)115±5% 115±5% 120±5% 120±5% 120±5% 120±5% 120±5% 125±5% 125±5% 125±5%
Lumen output(LM)2530±5% 2530±5% 2640±5% 2640±5% 2640±5% 2640±5% 2640±5% 2750±5% 2750±5% 2750±5%
CRIRa≥80
Input VoltageAC 100-277V
Frequency range50/60Hz
Total Harmonic Distortiont<25%
Beam Angle1200
Working Temperature-20℃~+45℃
Stotage Temperature-25℃~+65℃
