Custom Ceiling Light Fixtures – Enrich Every Space with Innovative Technology

Ceiling light fixtures are a wonderful way to illuminate and add a modern appeal to any space. If you’re looking for energy-efficient alternatives or want to replace your existing obsolete ceiling lights, you’ve arrived at the right destination. At CPD Lighting, we can customize your ceiling lights into any shape or size, always ensuring to deliver products that fit perfectly with every taste, lifestyle, and special needs.

Our custom ceiling fixtures are designed with the latest technology that can withstand heavy weight and traction. Our commitment to quality, cost-effective rates, and consistent improvements is something that sets us apart from other LED lighting manufacturers. The brightness and efficacy of our light panels are very powerful which will last longer, without paying any high maintenance costs.

The vibrant colors and thin nature of our custom LED ceiling lights can brighten up all sorts of spaces, preferred by many clients such as top designers, architects, marketing firms, trade show firms, car showroom owners, runways, and more from all over the world.

Bringing Your Illumination Vision into Life

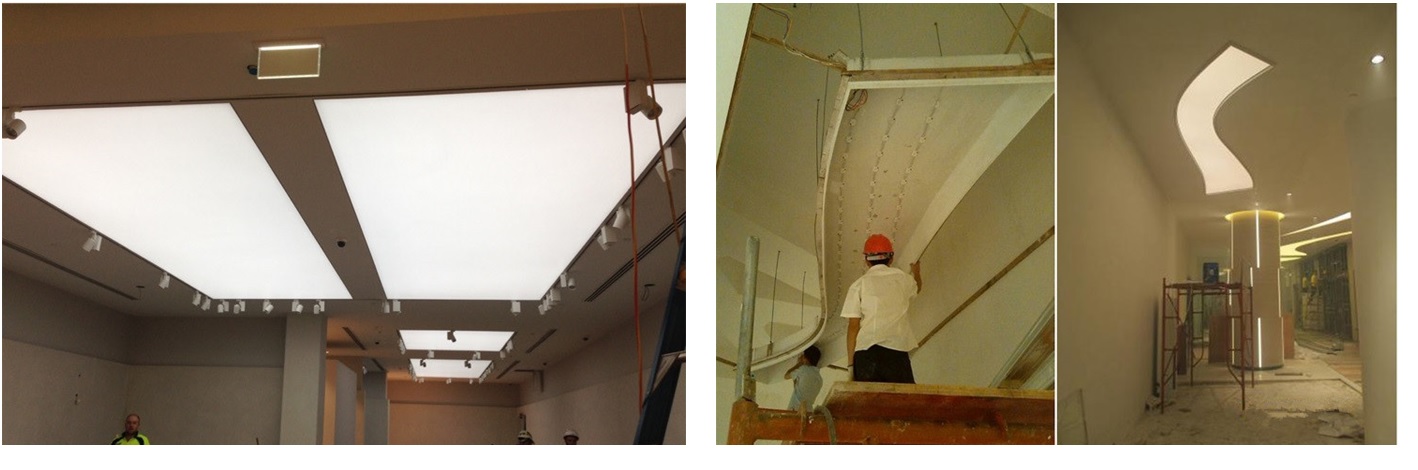

You can install our custom LED ceiling panels in a variety of environments, including lobbies, hallways, guest room foyers, dining areas, pubs, retail stores, car showrooms, and interior spaces. Our unique light creations will complement and enhance whatever ambience you want in the best possible manner.

We keep ourselves up to date with the latest technologies and consistently work to serve the impeccable results to each client. Whether your project is big or small, we treat each one of them with equal respect, care, and integrity.

Talk to our representatives today to get the smartest custom LED lights for your ceilings.

Custom Size LED Light Panels Uses

  • Illuminated Bars and Countertops
  • Backlighting
  • Illuminated Stone (Onyx / Corien / Quartzite / Etc )
  • Backlit Graphics
  • Tradeshow Displays
  • Tradeshow Illuminated Flooring
  • And much more...

Custom Size LED Light Panel Features

  • Available in custom sizes, shapes
  • Frameless designs
  • Slim (6mm thick)
  • Laser cut dotting technology
  • Pull-resistant design wire
  • Custom temperature options (2700-3200K, 4000-5000K, 6000-6500K…)
  • High brightness
  • Long LED lifespan (50 000-75000 hours)
  • Energy saving and maintenance free (70% energy savings over traditional lighting)
  • Even and stable light quality
  • Advanced 3-year warranty

Technical Information

Specifications
Input Voltage12 volt / 24 volt power supply depending on your requirement.
Wattage1 0.8W per 40 inches LED strip
Color Temperature2700-3200 K 4000-5000 K 6000-6500K and etc.
Wire size20AWG (Pull-resistant design wire)
Shape and sizeCan be customized any shape, largest size is 4’x8’ (can be tiled for larger sizes)
Thickness6mm (.23") (+/-) 1mm
Weight"roughly" 1.5 lbs per sq foot
Wire coming from panel3” DC wire + 10’ extension cord
Material Front Side of PanelClear pure virgin acrylic panel or with diffuser
Material Back Side of PanelHigh quality reflecting sheet
Catalog DesignationNon- All custom shapes, no stock items
Dimming Capacities12V/24V-72A (Plug and play dimmer)
Power SupplyUL Listed DC adaptor
Connection from Panel to Power SupplyPlug & Play. Male plug on power supply / Female plug on panel (2.1 / 5.5 mm barrel plug)
